Customer Dashboard — Tickets

The Tickets section is a helpdesk: support tickets from every channel land in an inbox, get assigned (manually or by routing rules), tracked against SLA policies, and optionally synced with an external ticketing provider. Sub-sections: Overview (inbox), Settings, Auto-assignment (routing), SLA, Integrations.

Screenshots

Architecture Overview

How It Works (Step-by-Step)

Every route runs four layers (from ticket.routes.ts header): verifyJwt → requireFeatureAccess(tickets module) → requirePermission("tickets","view") → resolveTicketScope → requireTicketPermission(action). Scope is mandatory on every route — without it a customer could read the whole org's tickets.

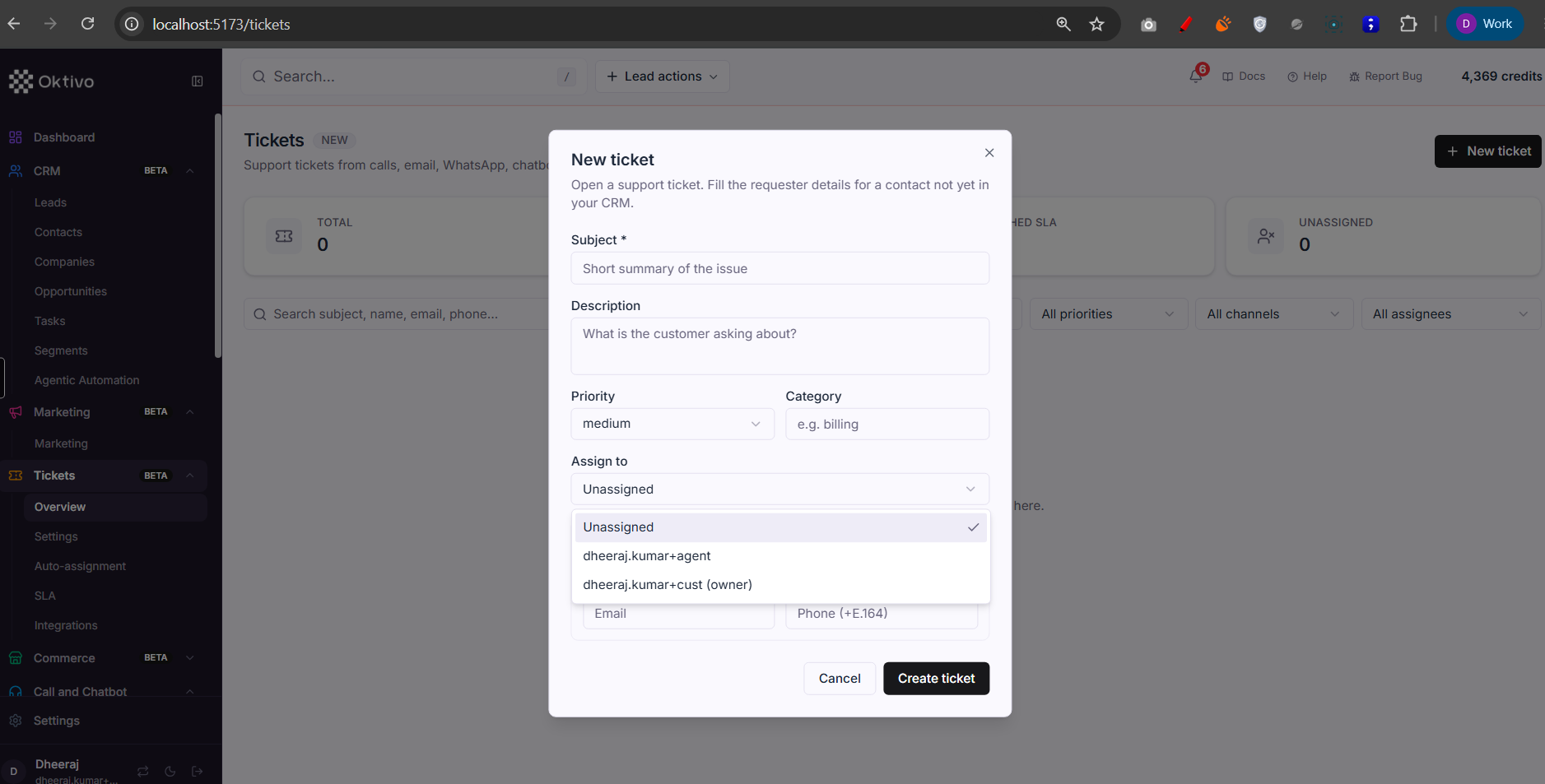

1. Overview / inbox (/tickets). GET /api/tickets (list, view), GET /api/tickets/stats, GET /api/tickets/:id (detail), GET /api/tickets/:id/thread + /events (conversation + audit timeline). The module-only GET /api/tickets/permissions tells the UI which controls to show.
2. Create & reply. POST /api/tickets (create), POST /api/tickets/:id/reply + /comment (create), POST /api/tickets/:id/convert-to-lead (turn a ticket into a CRM lead), PATCH /api/tickets/:id (update), PATCH /api/tickets/:id/assign (manager — reassigning across other users' tickets).

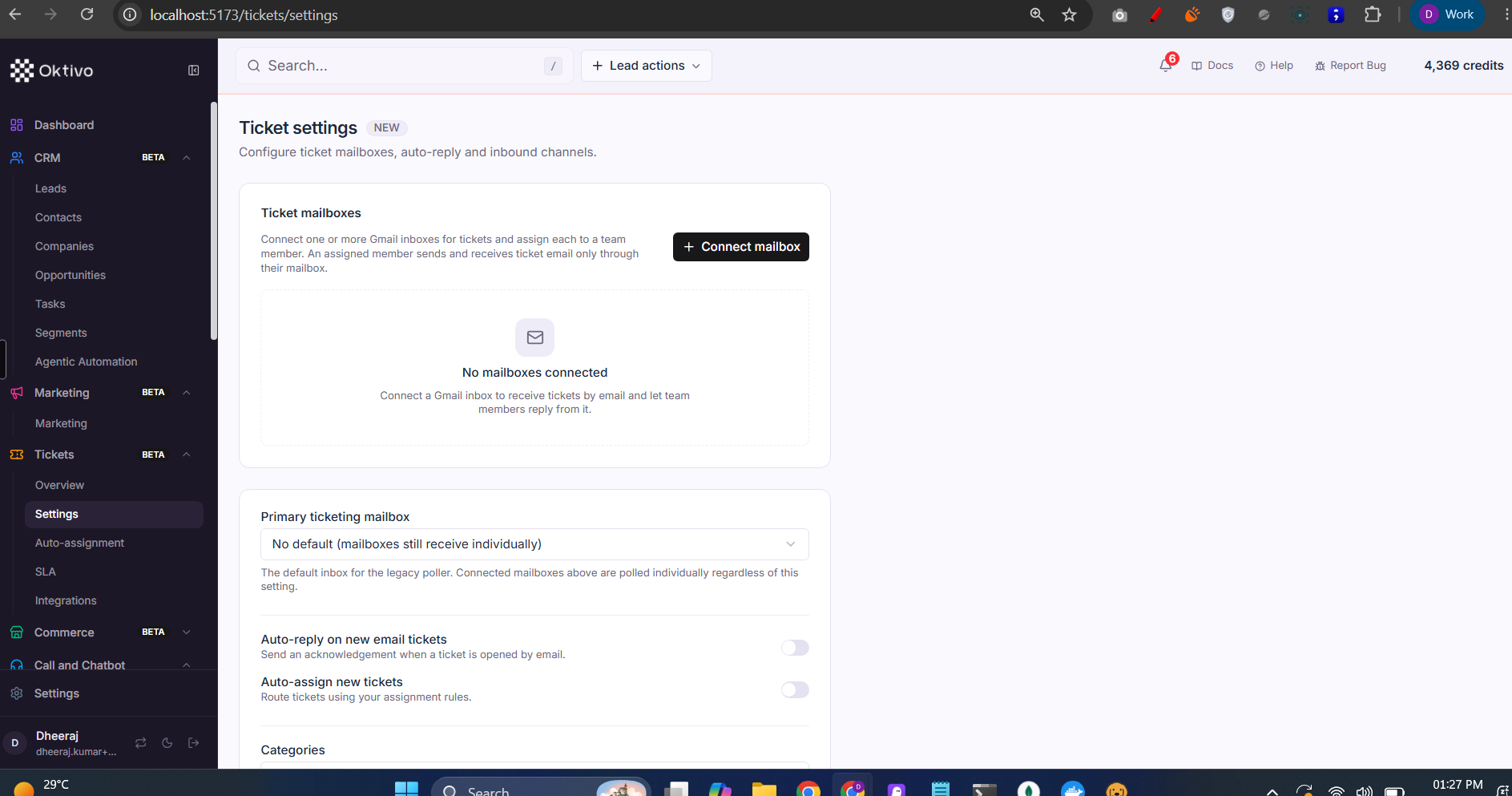

3. Settings (/tickets/settings). GET with view; PATCH /api/tickets/settings is manager-only. Stored in TicketSettings.

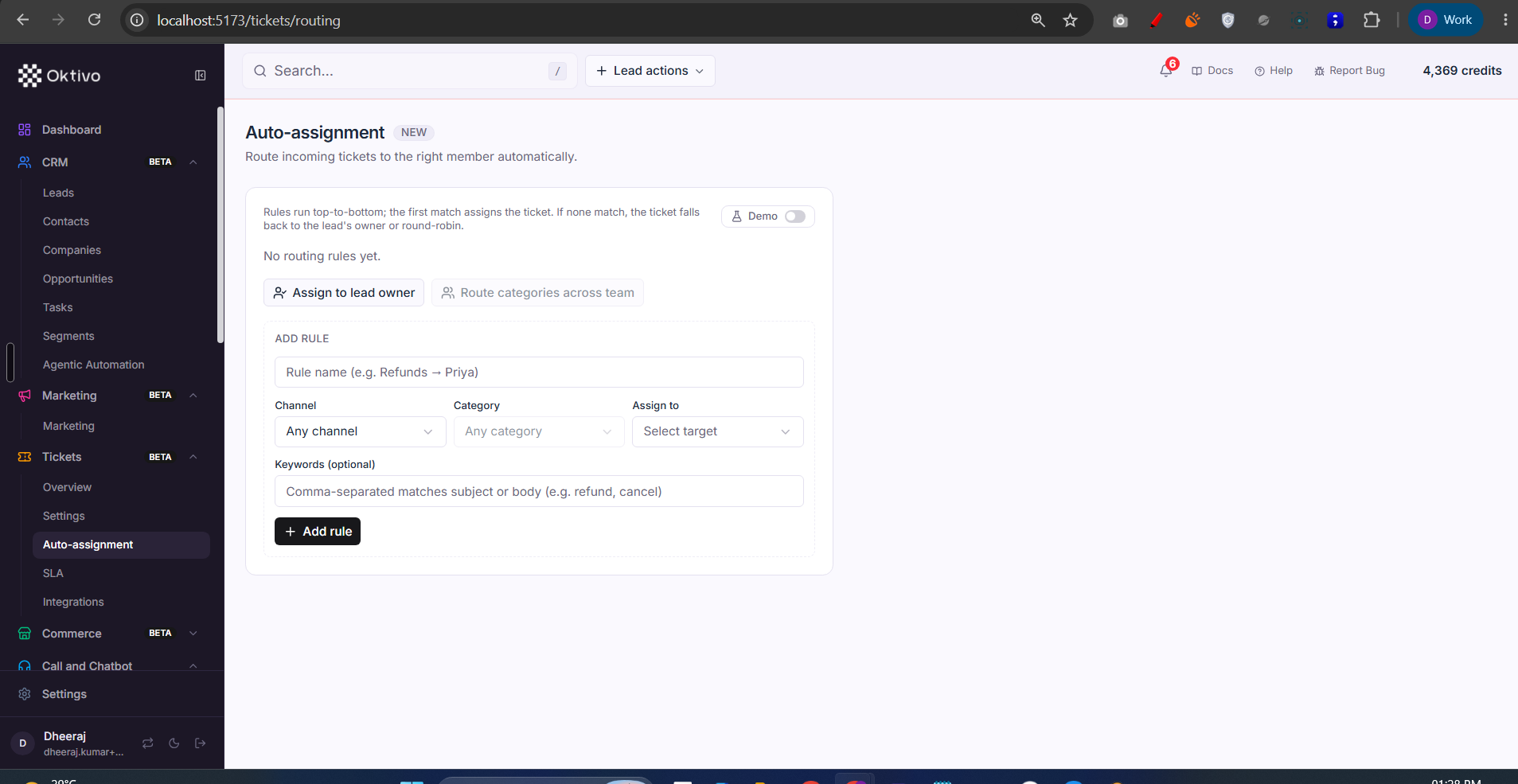

4. Auto-assignment / routing (/tickets/routing). CRUD on routing rules; reads view, writes manager-only. Rules live in TicketRoutingRule and decide who a new ticket is assigned to.

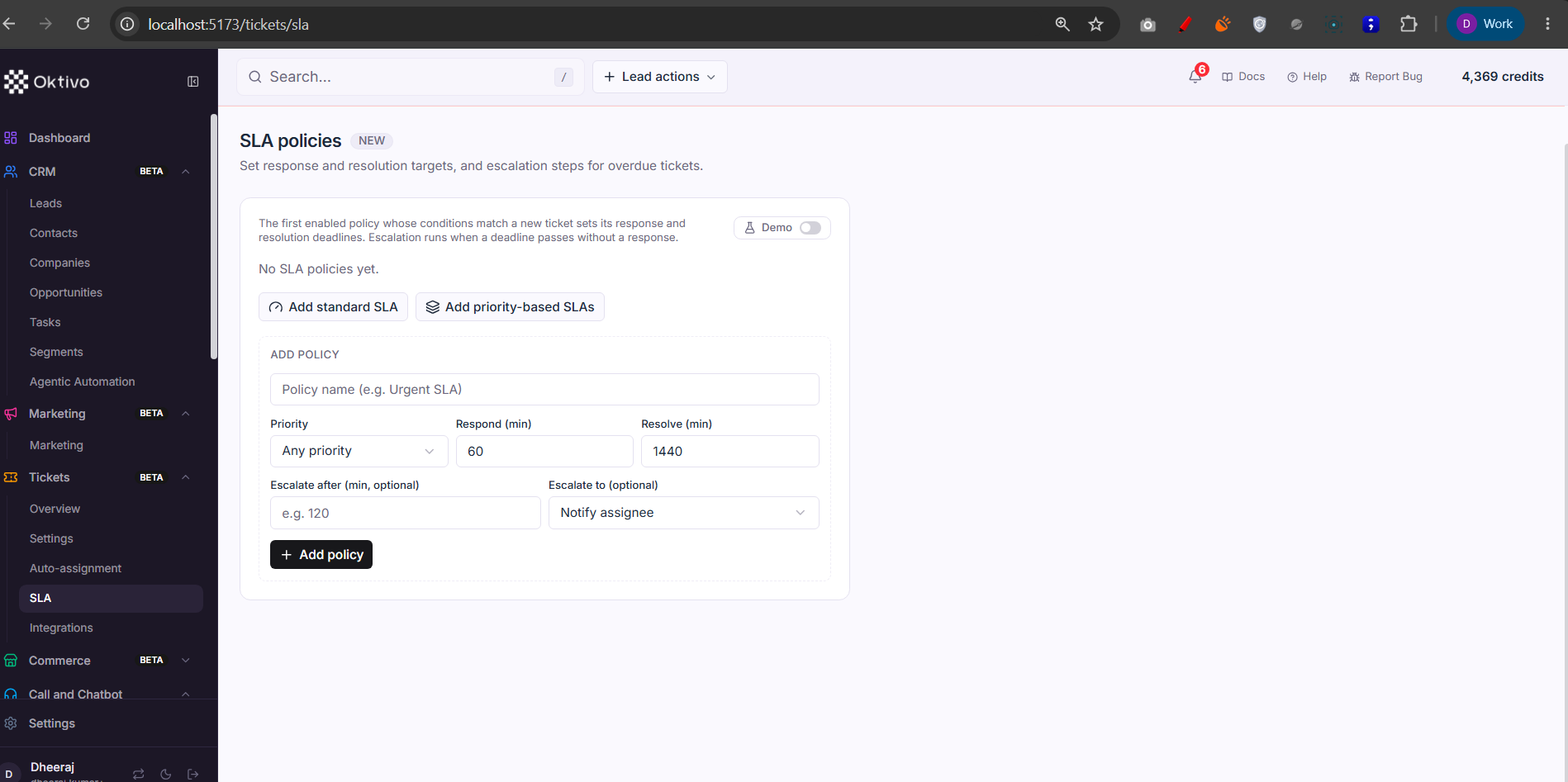

5. SLA (/tickets/sla). CRUD on SLA policies (first-response / resolution targets); reads view, writes manager-only. Stored in TicketSlaPolicy.

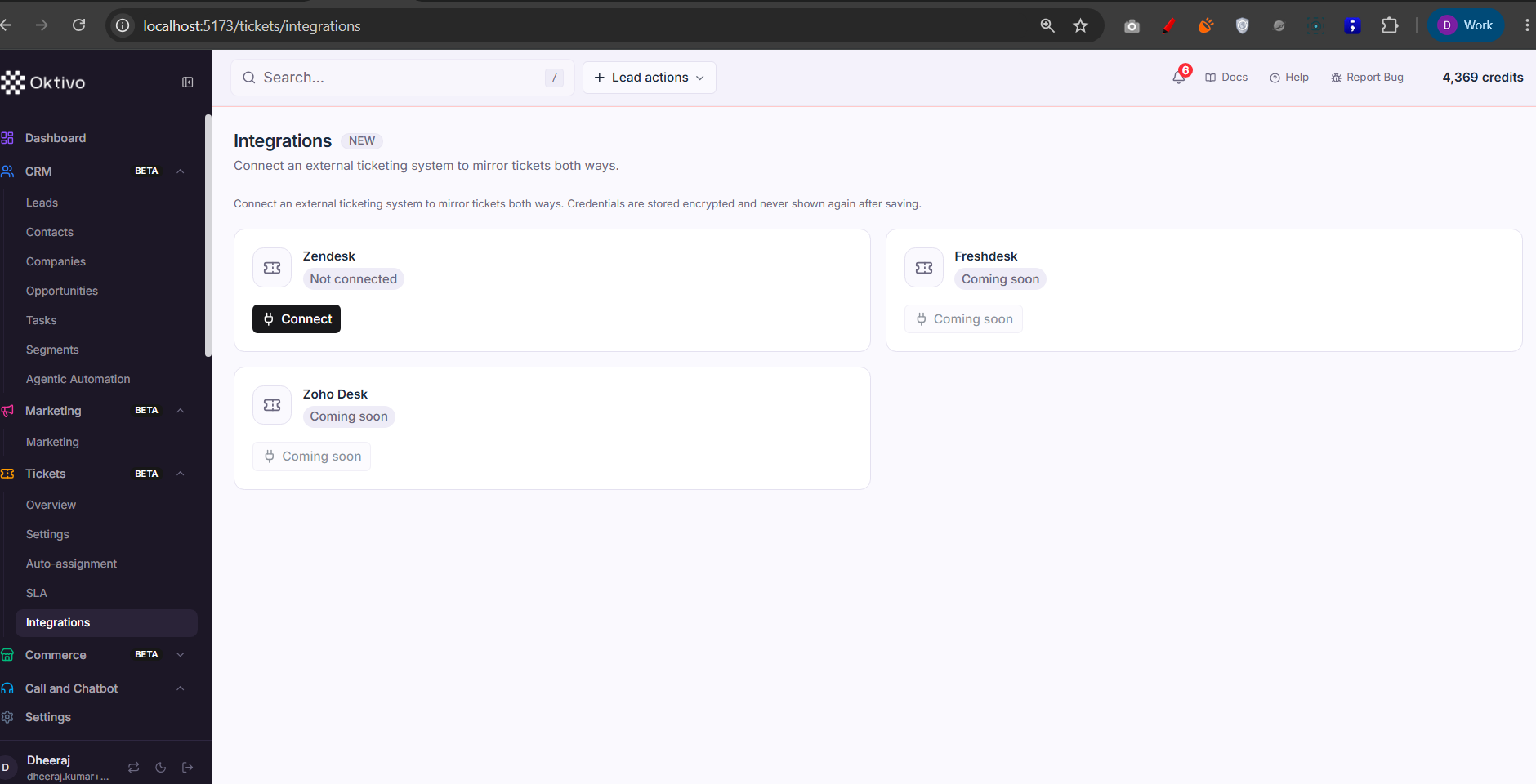

6. Integrations (/tickets/integrations). Connect an external ticketing provider (and Gmail mailboxes for email ticketing). Requires manage + manager + the tickets.integrations feature. Provider config in TicketProviderConfig; mailboxes in TicketMailbox. The provider webhook (ticketProviderWebhook) ingests external events.

File Reference

File	Role	Key Functions
routes/ticket.routes.ts	Authoritative endpoint/permission table	gate, canView, canCreate, managerCreate
controllers/ticket.controller.ts	Inbox, replies, settings, routing, SLA, integrations	listTickets, replyToTicket, assignTicket, updateTicketSettings
controllers/ticketMailbox.controller.ts	Gmail mailboxes for email ticketing	listTicketMailboxes, getTicketMailboxAuthUrl
middleware/ticketScope.middleware.ts	Tenant + visibility scope + manager check	resolveTicketScope, requireTicketManager
middleware/ticketPermission.middleware.ts	Per-action authority	requireTicketPermission

Data Model

Collection	Why it exists	Key fields
Ticket	The support request	customerUID, status, assignedToUID, priority
TicketMessage	Thread messages (customer + agent replies)	ticketId, body, direction
TicketEvent	Audit timeline (status/assign changes)	ticketId, type
TicketExternalLink	Link to an external provider ticket	provider, external id
TicketRoutingRule	Auto-assignment rules	conditions, assignToUID
TicketSlaPolicy	SLA targets	first-response / resolution minutes
TicketSettings	Per-org ticket config	defaults, channels
TicketMailbox / TicketProviderConfig	Email inbox + external provider	tokens, provider type

API Endpoints

List tickets

• Method: GET · Path: /api/tickets · Auth: gate + requireTicketPermission("view")

Create / reply

• POST /api/tickets (create), POST /api/tickets/:id/reply (create), POST /api/tickets/:id/comment (create).

Assign (manager)

• Method: PATCH · Path: /api/tickets/:id/assign · Auth: canCreate + requireTicketManager.

Settings / routing / SLA (read view, write manager)

• GET/PATCH /api/tickets/settings, GET/POST/PATCH/DELETE /api/tickets/routing-rules[/:ruleId], GET/POST/PATCH/DELETE /api/tickets/sla-policies[/:policyId].

Integrations (manage + manager + feature)

• GET /api/tickets/integrations, PUT/DELETE /api/tickets/integrations/:provider, mailbox routes GET/PATCH/DELETE /api/tickets/mailboxes[...].

Provider webhook (public, signature-verified)

• Declared in ticketInternal.routes.ts — the external provider posts events with no JWT.

External Integrations

• External ticketing provider — two-way link via tickets.integrations; outbound config in TicketProviderConfig, inbound via ticketProviderWebhook.
• Gmail (ticket mailboxes) — multi-inbox email ticketing. The OAuth callback is public (browser redirect carries no JWT) and lives in ticketInternal.routes.ts.

How to Test (End-to-End)

1. Grant tickets (+ tickets.view / .create). Open /tickets.
2. Create a ticket → it appears in the inbox and GET /api/tickets/stats increments.
3. Reply to it → a TicketMessage is written and shows in the thread; a TicketEvent logs the action.
4. As a manager, add a routing rule and an SLA policy → confirm new tickets auto-assign and show SLA timers.
5. As a non-manager, confirm PATCH /api/tickets/settings returns 403.
6. With tickets.integrations, connect a mailbox and confirm inbound email creates tickets.

Troubleshooting

Symptom	Cause	Fix
Tickets section hidden	tickets module off (or crm_leads missing — Tickets depends on Leads)	Grant Tickets + Leads
Can see tickets but can't reply	tickets.create not granted	Grant the create permission
Settings/routing/SLA return 403	Not an org manager	Those writes are manager-only
Integrations tab locked	tickets.integrations feature off	Grant the integrations capability
Inbound email not creating tickets	Mailbox not connected / webhook not firing	Reconnect the mailbox; verify provider webhook
