Customer Dashboard — Automation

The Automation group is the no-code orchestration hub: Overview (the Automation Hub landing), Auto Workflow (lead-automation builder), WhatsApp Automation (event-driven WhatsApp flows), and IVR Workflow (the call-flow builder). Each builder is gated on its own feature so a customer only sees what it has enabled.

Screenshots

Architecture Overview

How It Works (Step-by-Step)

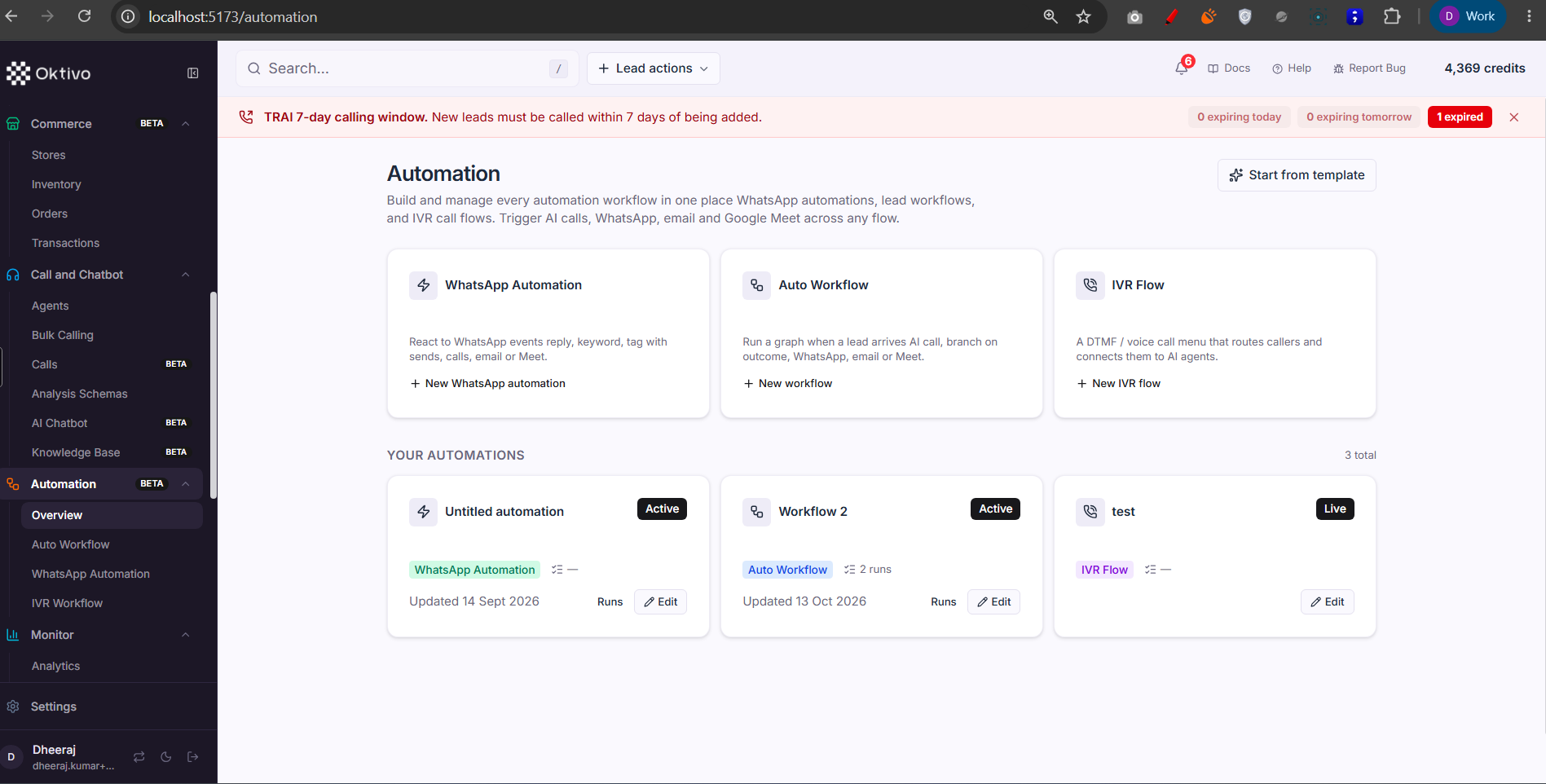

1. Overview (/automation). The Automation Hub landing. Gated only by the broad automation RBAC resource so a member without it never sees the hub; the specific builders keep their own resources.

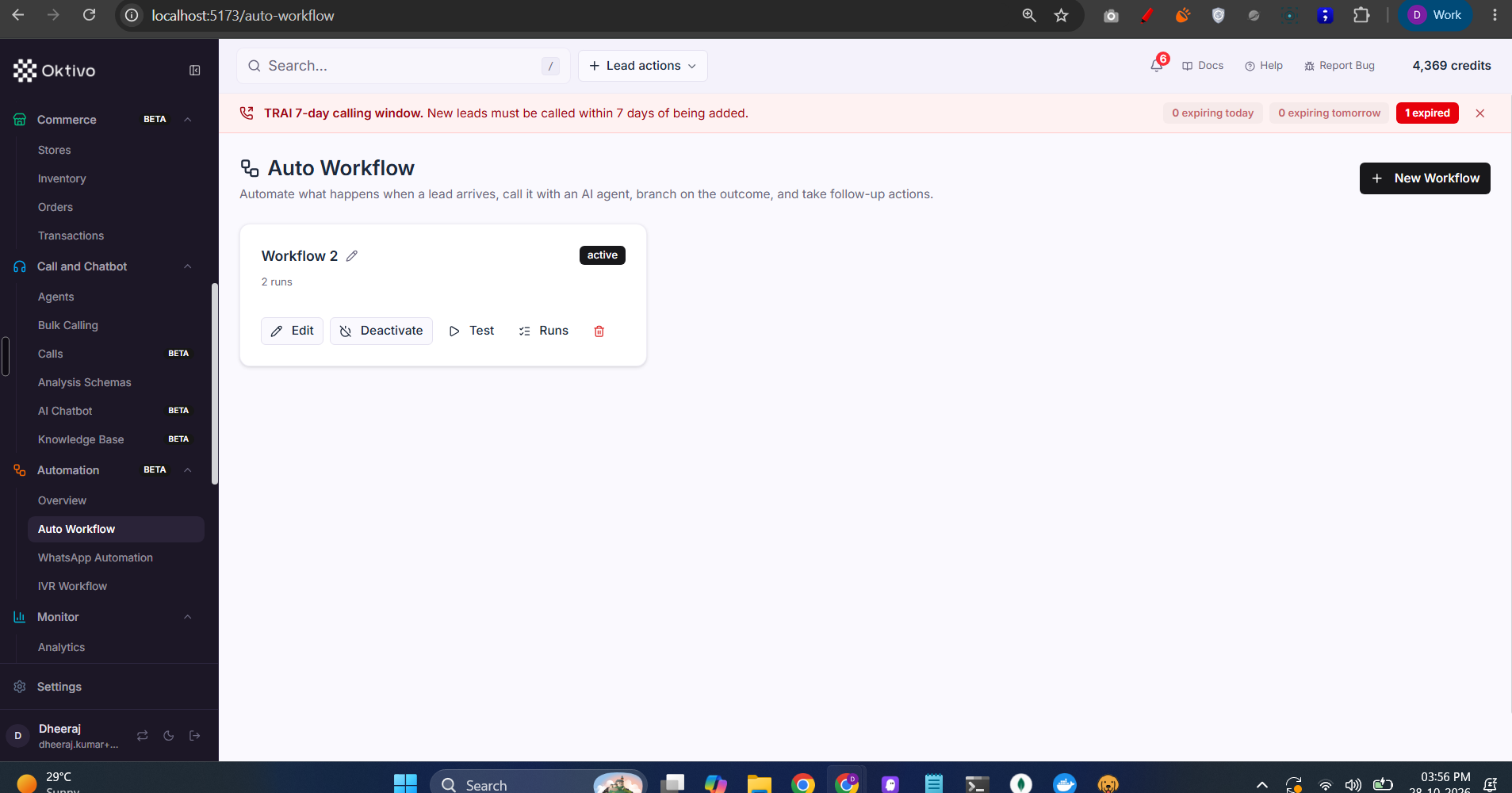

2. Auto Workflow (/auto-workflow). A lead-automation workflow builder: CRUD + activate/deactivate + recent runs. Gated by the workflow feature + workflow resource. A workflow orchestrates calling, so the module depends on Bulk Calling (MODULE_DEPENDENCIES: workflow → voice_campaign). Backed by Workflow + WorkflowRun.

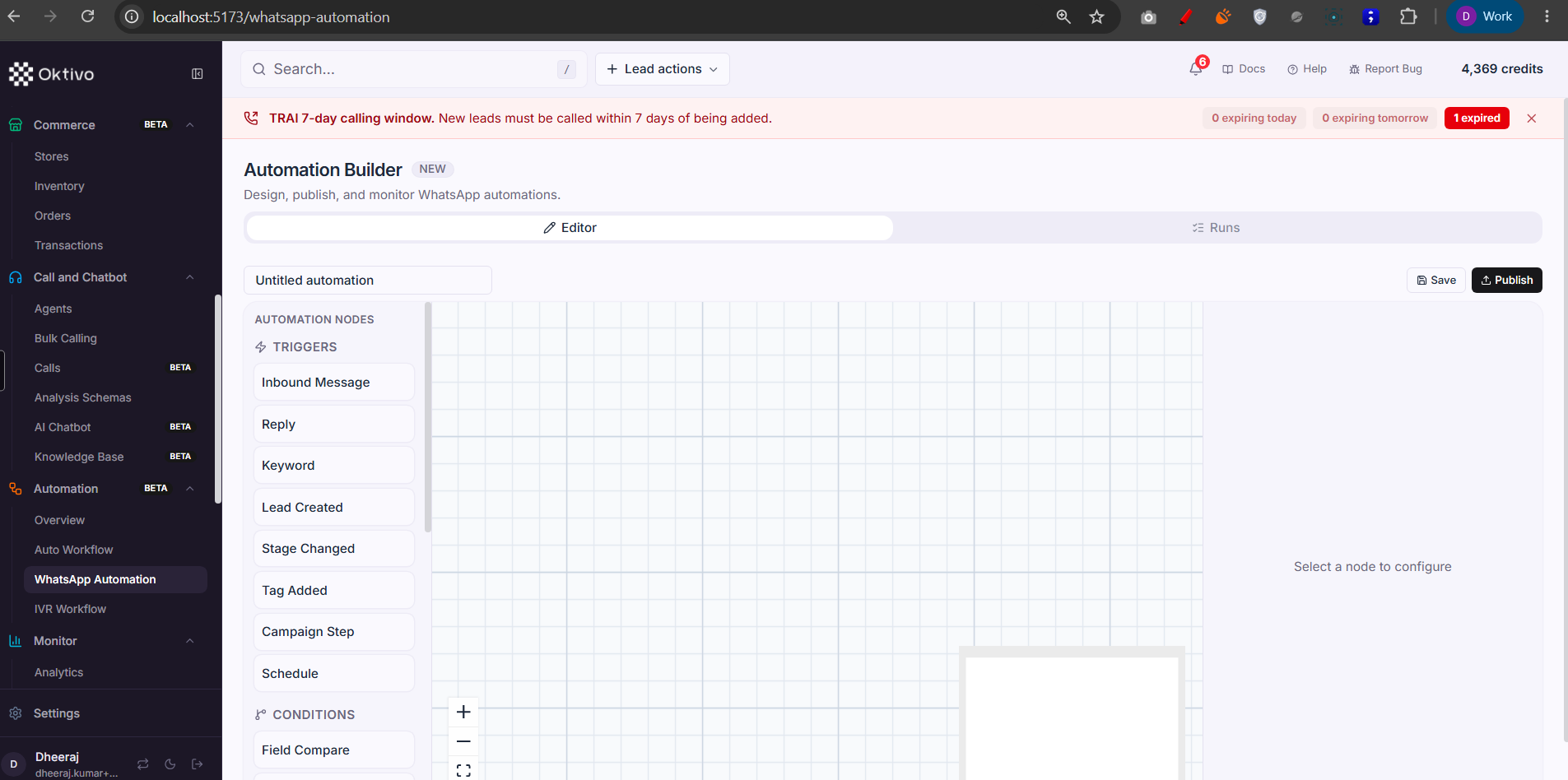

3. WhatsApp Automation (/whatsapp-automation). Event-driven WhatsApp automation definitions: CRUD + activate/pause + a read-only run inspector. Gated by whatsapp.automation + whatsapp_automation resource + resolveCrmLeadScope. Runs are never mutated over HTTP (GET-only). Depends on WhatsApp (and, for call follow-ups, Bulk Calling). Backed by WaAutomationDefinition + WaAutomationRun + WaFlowDefinition.

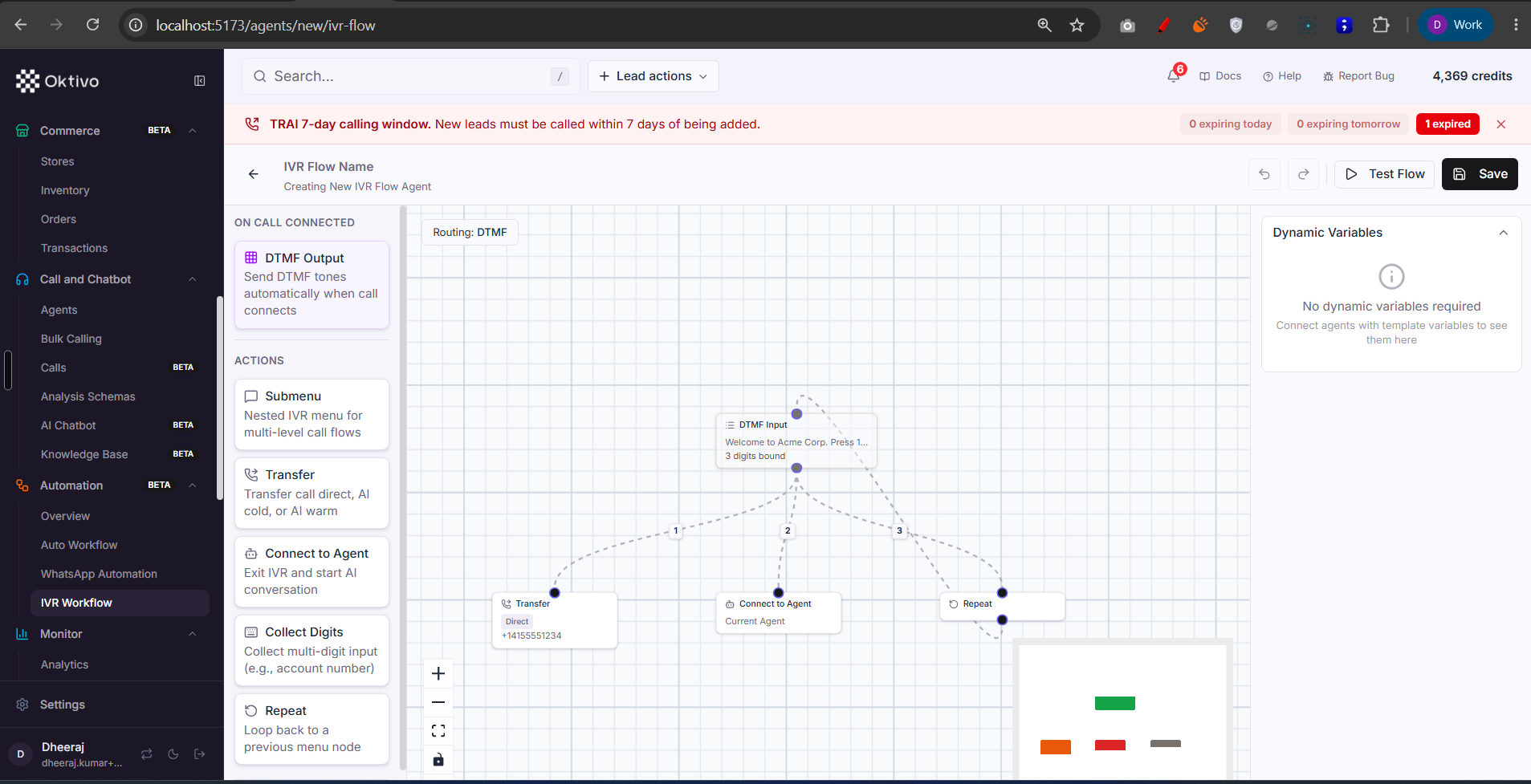

4. IVR Workflow (/agents/new/ivr-flow). The call-flow builder for routing inbound/outbound calls. Per-agent IVR actions are stored via ivr-action.routes.ts (GET/PUT /api/agents/:agentId/ivr-actions, gated by agents resource + ai_transfer/call_control on writes) and the inbound IVR config via inbound-ivr.routes.ts (call_flow_builder). Depends on Bulk Calling. See Call Flow Builder and IVR Flow Agent Type.

File Reference

File	Role	Key Functions
routes/workflow.routes.ts	Auto Workflow CRUD + lifecycle + runs	createWorkflow, activateWorkflow, getWorkflowRuns
controllers/workflow.controller.ts	Workflow orchestration	testRunWorkflow
routes/waAutomation.routes.ts	WhatsApp automation definitions + runs	createDefinition, activateDefinition, listRuns
routes/ivr-action.routes.ts	Per-agent IVR actions	getIvrActions, updateIvrActions
routes/inbound-ivr.routes.ts	Inbound IVR config	updateInboundIvrConfig
app/src/lib/features.ts	Module dependencies (workflow/whatsapp.automation/ivr → voice_campaign)	MODULE_DEPENDENCIES

Data Model

Collection	Why it exists	Key fields
Workflow	Auto-workflow definition	trigger, steps, active
WorkflowRun	One execution of a workflow	status, step results
WaAutomationDefinition	WhatsApp automation definition	trigger event, steps, active
WaAutomationRun	One execution (read-only over HTTP)	status, timeline
WaFlowDefinition	A WhatsApp Flow (screens → Meta Flow JSON)	routing model

API Endpoints

Auto Workflow

• POST /api/workflows (create), GET /api/workflows, PUT /api/workflows/:id, POST /api/workflows/:id/activate + /deactivate, GET /api/workflows/:id/runs.
• Auth: verifyJwt → requireFeatureAccess("workflow") → requirePermission("workflow", view|create|...).

WhatsApp Automation

• POST/GET/PUT /api/wa-automations[...], POST /api/wa-automations/:id/activate + /pause, GET /api/wa-automations/:id/runs (and /runs/:runId).
• Auth: verifyJwt → requireFeatureAccess(whatsapp.automation) → requirePermission("whatsapp_automation","view") → resolveCrmLeadScope.

IVR actions / inbound config

• GET/PUT /api/agents/:agentId/ivr-actions (agents resource; writes need ai_transfer/call_control + requireRole("customer")).
• GET/PUT/DELETE /api/agents/:agentId/inbound-ivr-config (call_flow_builder).

External Integrations

• LiveKit — IVR workflows and workflow call steps place calls via the Agent Server.
• WhatsApp (Meta Cloud API) — WhatsApp Automation sends messages/templates over the WhatsApp workspace.
• Agent Server internal fallback — /internal/agent-ivr-actions/:agentId and /internal/agent-inbound-ivr-config/:agentId let the Agent Server fetch config (x-api-secret auth), not the customer.

How to Test (End-to-End)

1. Grant workflow (+ voice_campaign). Open /auto-workflow, create a workflow, activate it, and trigger it; confirm a WorkflowRun appears under runs.
2. Grant whatsapp.automation + WhatsApp. Create a WhatsApp automation, activate, fire its trigger event, and inspect the run (GET-only).
3. Open IVR Workflow; add an IVR action to an agent (PUT /api/agents/:id/ivr-actions) and confirm it is applied on a call.
4. Confirm removing voice_campaign surfaces a module-dependency warning when saving workflow in the admin grid.

Troubleshooting

Symptom	Cause	Fix
Automation group hidden	None of workflow/whatsapp.automation/call_flow_builder granted	Grant a builder feature
Saving workflow blocked	Missing voice_campaign prerequisite	Grant Bulk Calling (module dependency)
WhatsApp automation runs empty	Trigger event never fired, or definition paused	Fire the event; activate the definition
IVR actions PUT 403	ai_transfer/call_control off, or not a customer role	Grant the feature; use a customer account
